Why TECTUS is different

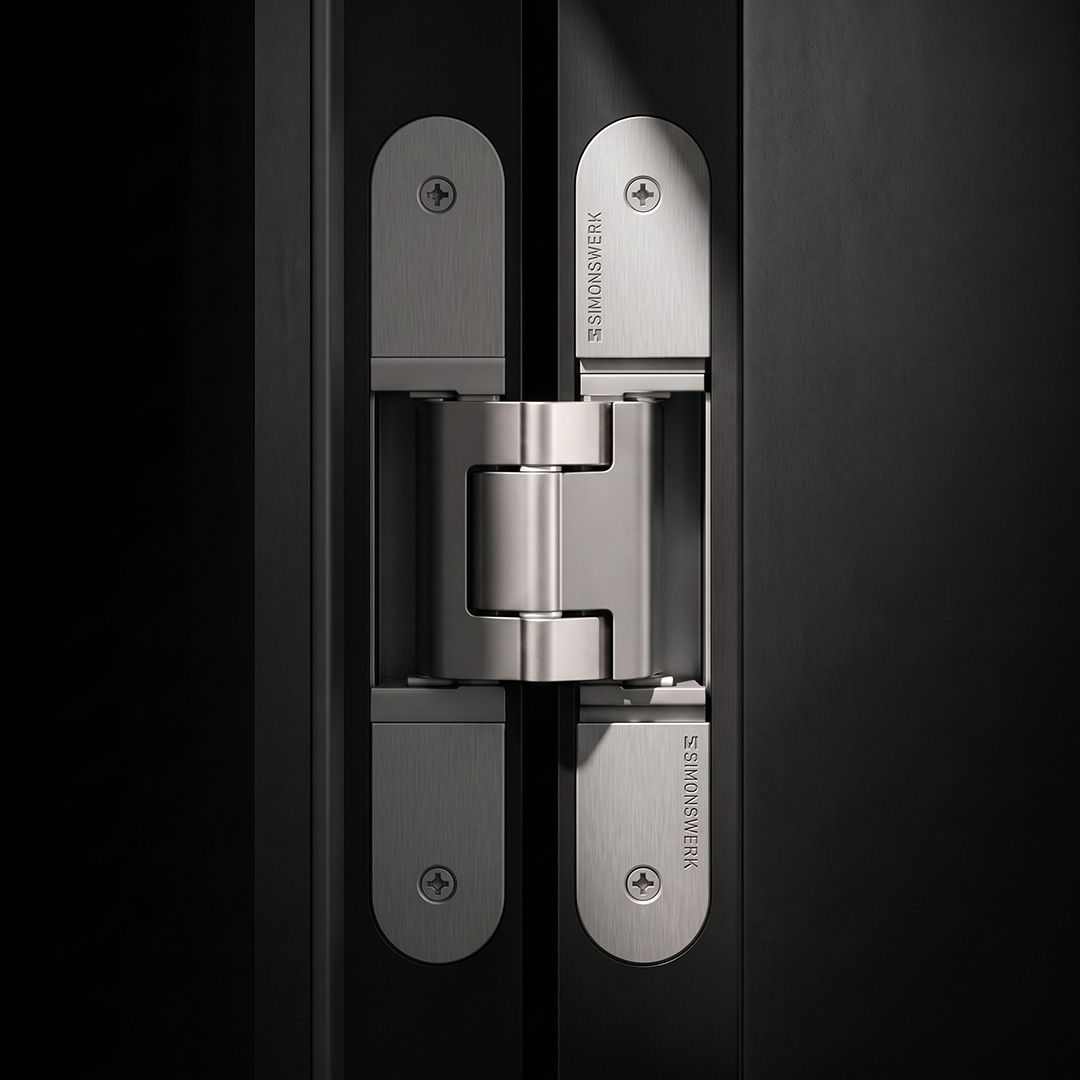

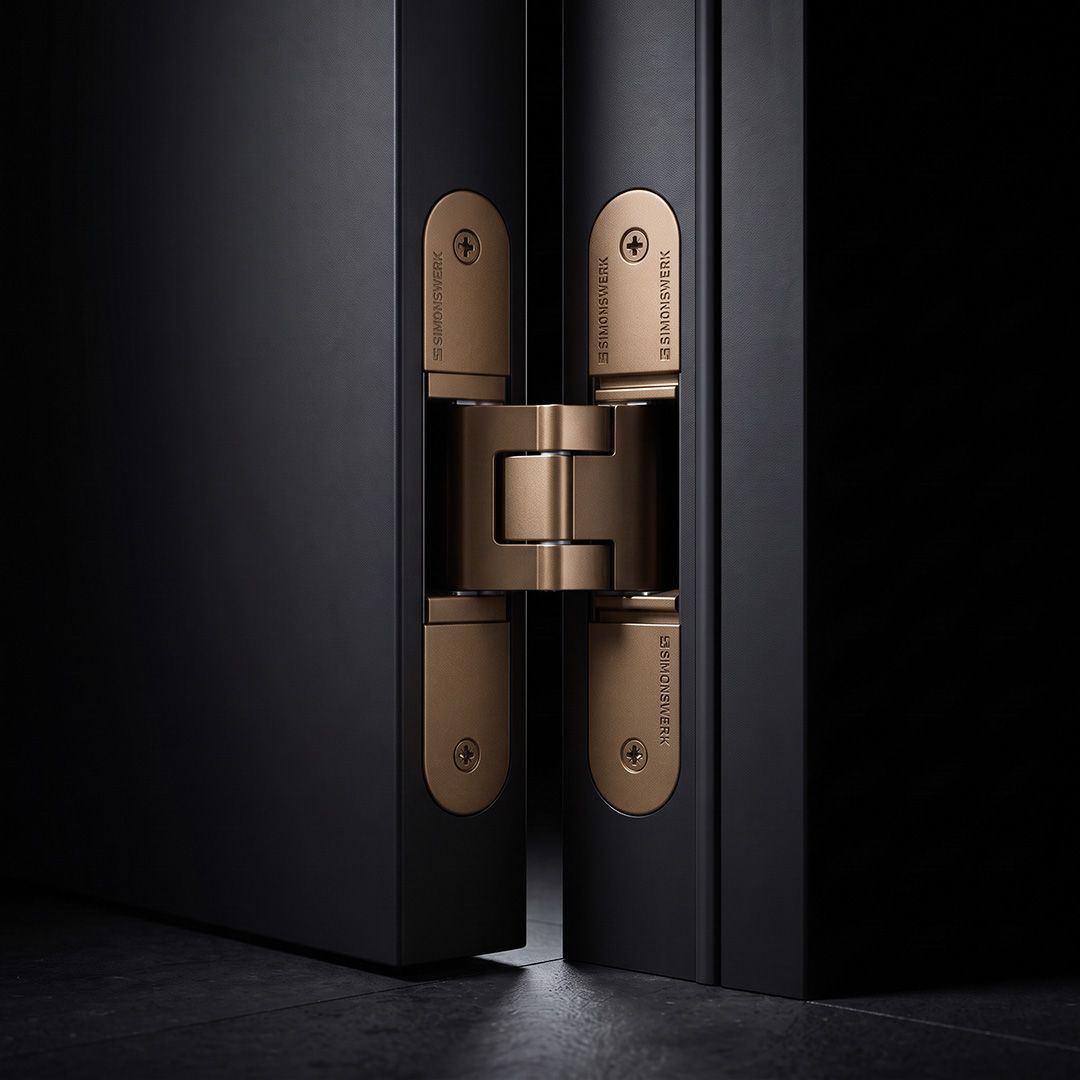

Traditional butt hinges — still the default across most of the South African market — sit exposed on the door frame, interrupting clean lines and dating a design the moment it's installed. TECTUS flips that entirely: the entire mechanism is recessed into the door leaf and frame, so when the door is closed, there's no visible hinge at all. Just an unbroken reveal line from frame to leaf.
What sets TECTUS apart from other concealed hinge systems is the engineering behind that invisibility:
- True 3-way adjustment – once installed, every TECTUS hinge can be fine-tuned on all three axes (side, height and compression), so doors can be perfectly aligned after hanging, and re-aligned years later as a home settles.
- 180° opening – doors swing fully flat against the adjacent wall, useful in tight hallways, walk-in robes and anywhere floor space is at a premium.
- Load-rated engineering – each model is rated for a specific door weight, so oversized timber doors are properly supported rather than sagging on hinges never designed for them.
- Built for solid, heavy doors – the range is designed around the weight and dimensions of real timber doors, not lightweight cavity or hollow-core units, making it the go-to spec for solid wood entry and internal doors.
It's this combination — invisible, adjustable, and properly load-rated — that's made TECTUS the standard in European architectural hardware, and increasingly the request we're getting from architects and high-end joiners locally.
The range we stock
We carry four models across the TECTUS 3D line, scaled to match door weight and thickness:
TE 240 3D
- Height: 155mm | Frame width: 21mm | Leaf width: 18mm
- Minimum door thickness: 26mm
- Load capacity: 60kg (per pair)
TE 340 3D
- Height: 160mm | Frame width: 28mm | Leaf width: 28mm
- Minimum door thickness: 38mm
- Load capacity: 80kg (per pair)
TE 540 3D
- Height: 200mm | Frame width: 32mm | Leaf width: 32mm
- Minimum door thickness: 40mm
- Load capacity: 120kg (per pair)
TE 640 3D
- Height: 240mm | Frame width: 32mm | Leaf width: 32mm
- Minimum door thickness: 40mm
- Load capacity: 200kg (per pair)
As the numbers go up, so does the size and load rating — meaning there's a TECTUS hinge suited to everything from a lightweight internal door to a substantial solid timber entrance door.

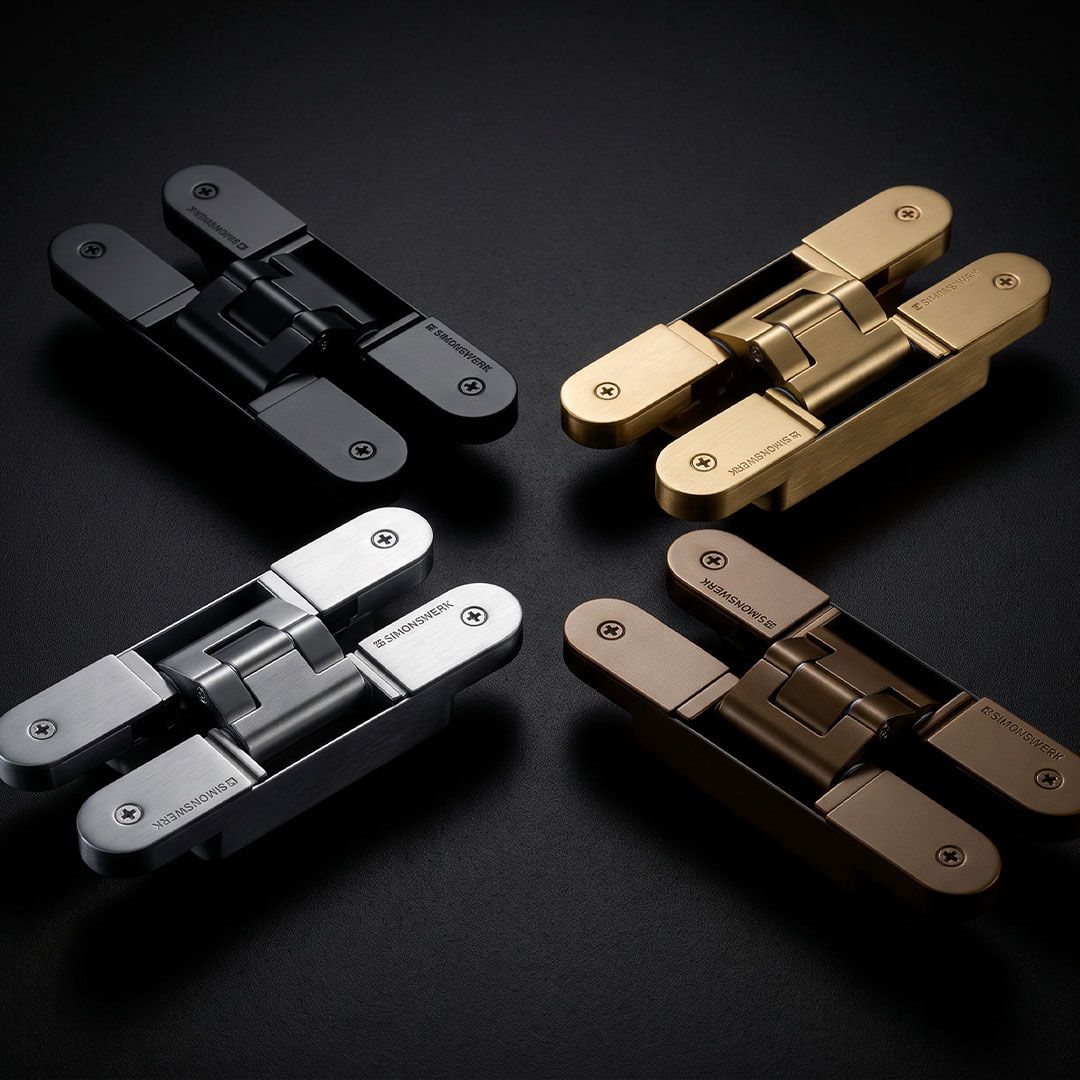

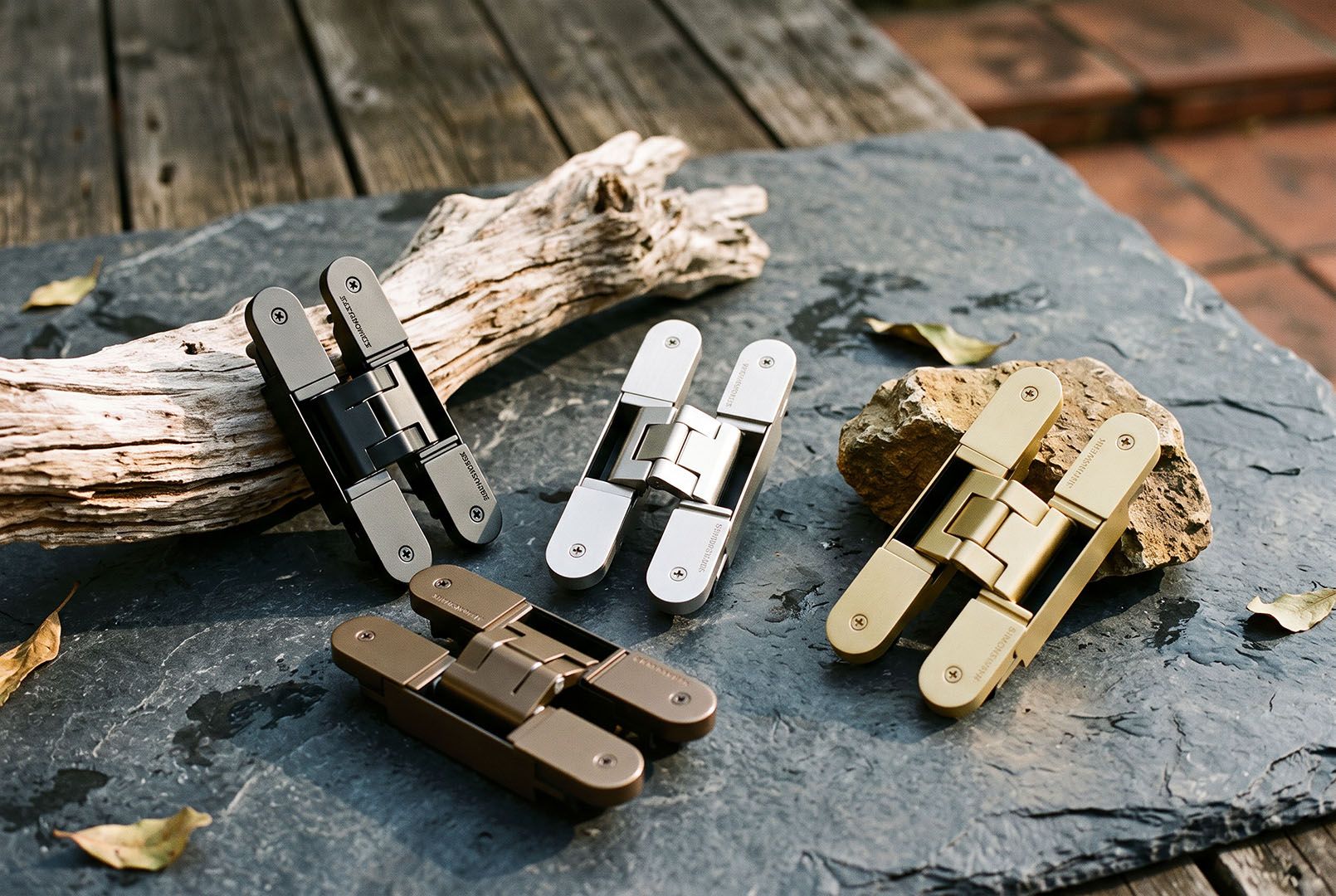

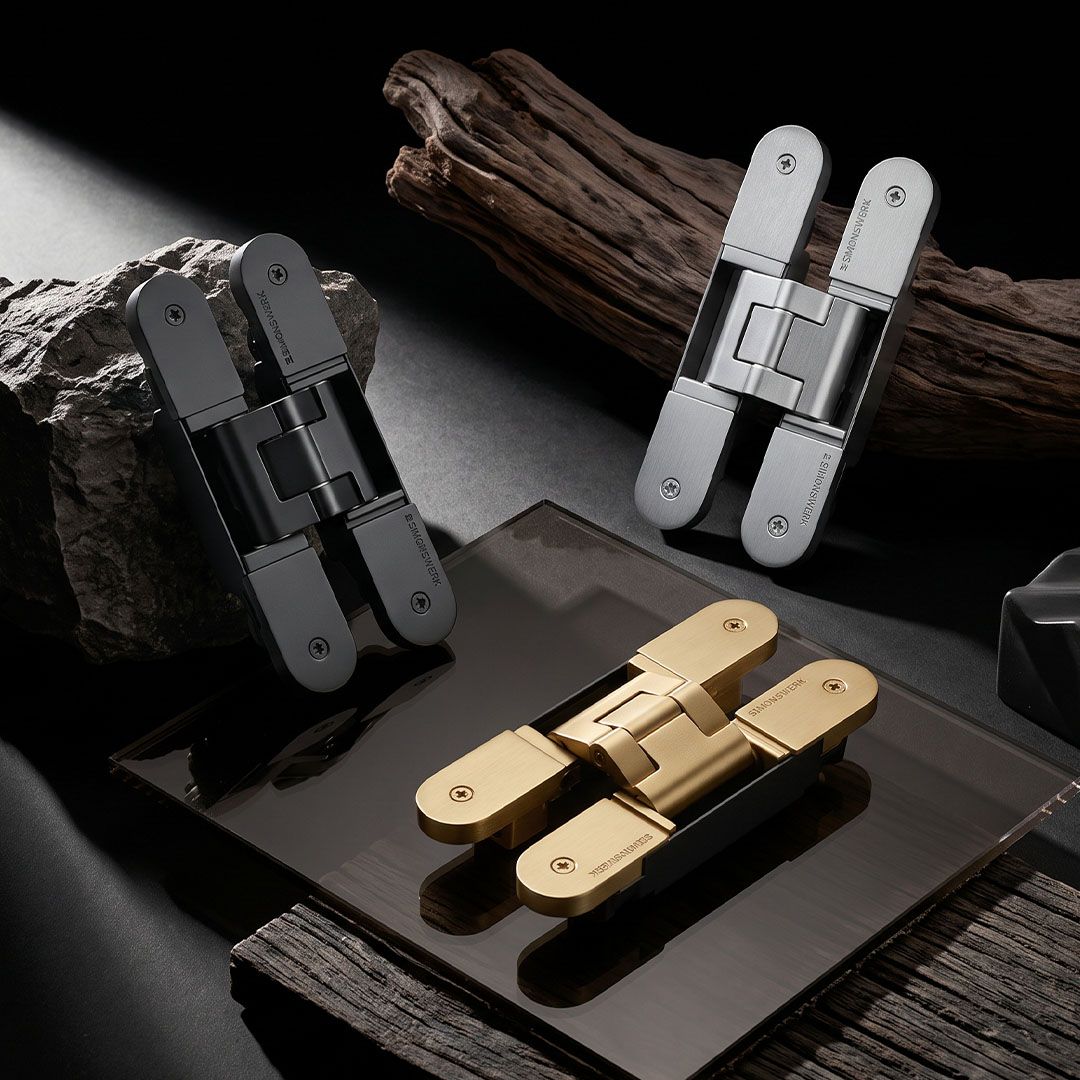

Finishes
We stock and import six finishes across the range, so you can match the hinge to your existing hardware or overall design scheme:
- Stainless Steel
- Satin Nickel
- Satin Chrome
- Satin Brass
- Bronze Metallic
- Matt Black
Where to find them
You can find the Simonswerk Tectus 3D concealed hinge at any of our Handles Inc stores across the Western Cape, or through our online store handlesinc.com
